LawMate PV-DY40UWW 4K UHD DIY CAMERA SYSTEM (WIDE ANGLE)

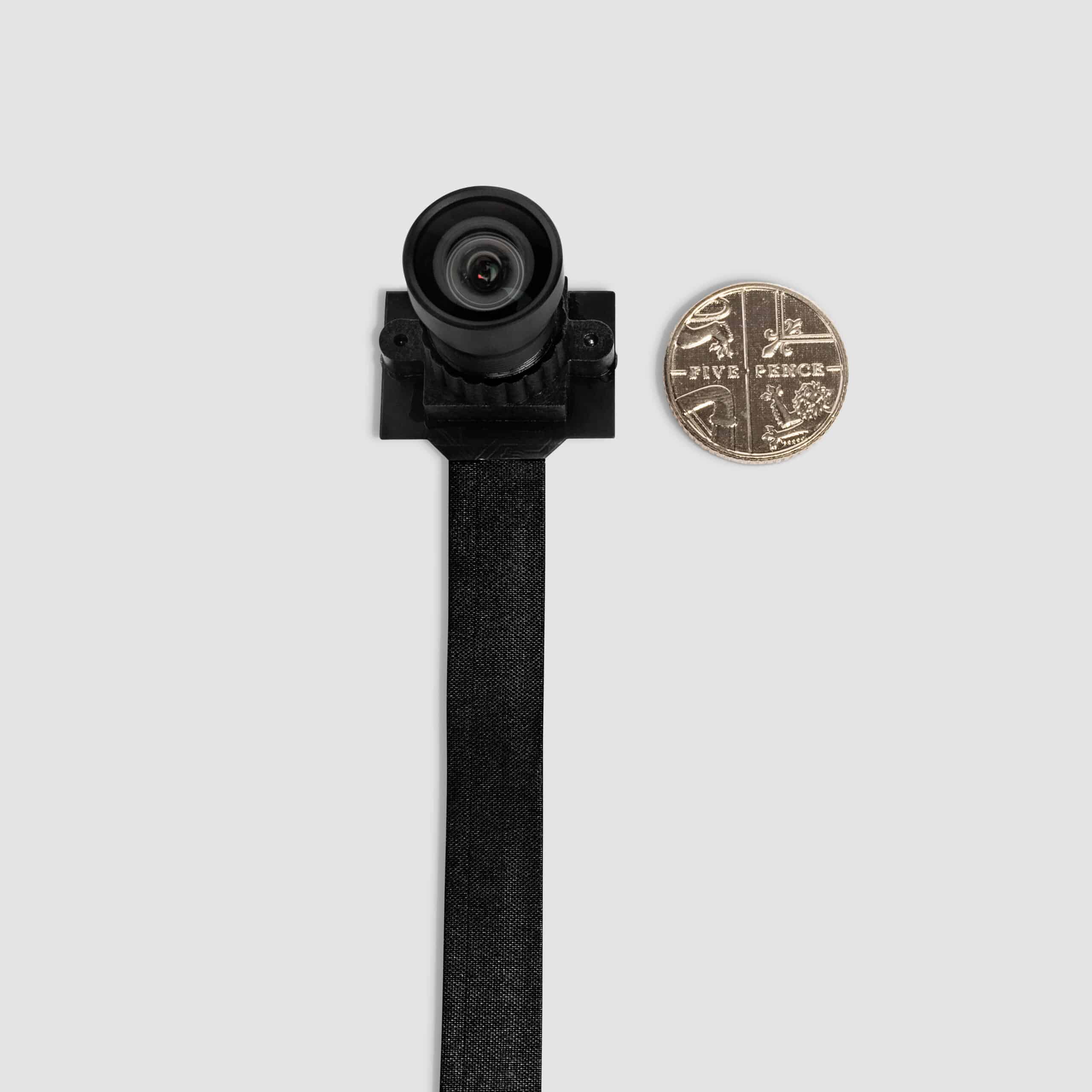

The PV-DY40UWW is our 2^nd generation DIY camera system now offering 4K UHD video quality with a wide-angled lens. The DY40UWW is a do-it-yourself covert camera system that has been specifically designed to allow you to build a camera system of your own. The 15cm ribbon cable allows you to install this compact system in to any hide of your choice. The recorder element is built in to the control block; this is also the location of the high quality AGC microphone. The 8.5mp UHD camera is placed at the end of the ribbon cable and measures just 23mmx15mm! Compared to the standard PV-DY40UW lens, the wide-angled lens version increases the FOV from 66° up to 96°.

The new PV-DY40UWW also features Wi-Fi connectivity to either an Android or an iOS smart device application allowing full user control and live preview (video & audio) from the camera. The camera is also fitted with one-touch operation on the device so you can choose to operate it manually or via the Wi-Fi connection. For even more convenience, the DY-40UWW hidden camera is also supplied with the PI-RF60 remote controller.

Unlike a lot of other devices we have seen, the DY40UWW records at up to 3840×2160 4K UHD resolution (at 25/30fps) providing ultra clear and smooth video as well as excellent sound quality. Using the Wi-Fi app, you can also select 1080p or 720p resolutions at up to 120fps. As with all LawMate covert recording devices, the video can be watermarked with a time and date stamp for evidential grade recordings. To playback the recorded video you can connect the camera to your computer with the supplied USB cable or place the SD card in to a standard card reader to playback via your computer. Alternatively, use the Wi-Fi connectivity & LawMate app to view or even download the video remotely (P2P only).

The benefit of Wi-Fi:

With the ability of Wi-Fi connectivity, you can instantly review the footage you have captured on a smartphone or tablet and you can live-stream the video content up to a distance of 5 metres. The Wi-Fi connectivity permits the user to download the captured content wirelessly. The Wi-Fi application also allows full control over the device, including resolution settings (4K/2.7K/1080p/720p), the ability to set and synchronise the time and date with your smart device, format the SD card and start/stop recording.

Features:

• 4K UHD video quality
• Wi-Fi enabled system
• Stream live video & audio
• Video & Photo capable (8.5mp photos)
• Photos: Jpeg format 3864×2218.jpg
• FOV: 96° / 3.2mm / F2.7
• Watermarked day/date/time stamping
• Motion detection or continuous recording options
• Law Enforcement grade video & audio capture
• Continuous recording for up to 90 minutes (Wi-Fi off) 70 minutes (Wi-Fi on)
• Manual controls on the device
• Simple set-up using the free Wi-Fi smart application
• Supports up to a 256gb Micro SD card
• USB type-C connection
• Can be externally powered using supplied USB cable
• H.264 .MOV file format
• Dimensions: 68x38x10mm

Wi-Fi Application features:

• Live view P2P
• Android and iOS application compatible
• Ability to switch between standard or motion detection recording
• Live start/stop recording
• Set the time & date / synchronise with your smart device time
• 4K/2.7K/1080p/720p switch
• 120 frames per second & 60 frames per second recording option (1080p or 720p)
• 25fps support
• Card formatting function
• Download feature

New for 2024

It goes without saying, 4K video technology is extremely detailed and high-quality when it comes to the final results. 4K means more resolution, more clarity and more editing options when it comes to post-production.

Is it better to shoot in 4k video or 1080p

From what we know about current display resolutions and the human eye, shooting 1080p will be fine for most applications. Past that, production quality is more important than resolution, but shooting in 4K will definitely give your projects more appeal on larger displays or projectors.

Is 4K really that much better than HD?

More advanced screens with 4K HDR meet these standards and have a typical resolution of 3840 x 2160 pixels, around four times than the traditional HD amount. Basically, 4K devices provide four times the normal pixels, improving the picture and screen quality.

Can the human eye see the difference between 1080p and 4K?

The human eye’s ability to discern the difference between 1080p and 4K largely depends on viewing distance and screen size you are viewing on. In certain situations, especially on larger screens or when sitting closer to the display, the eye can certainly perceive a difference, with 4K delivering a clearer, more detailed picture to the eye.

4K looks better

Leaving quality aside, 4K just looks better as it reduces the chance of colour banding. So your set colours will be captured in far more detail compared to 1080p resolution. Even the smallest of gradual colour changes will be captured almost as good as how you would see it in person. Skies won’t just look blue anymore, but rather a majestic spectrum of blue shades.

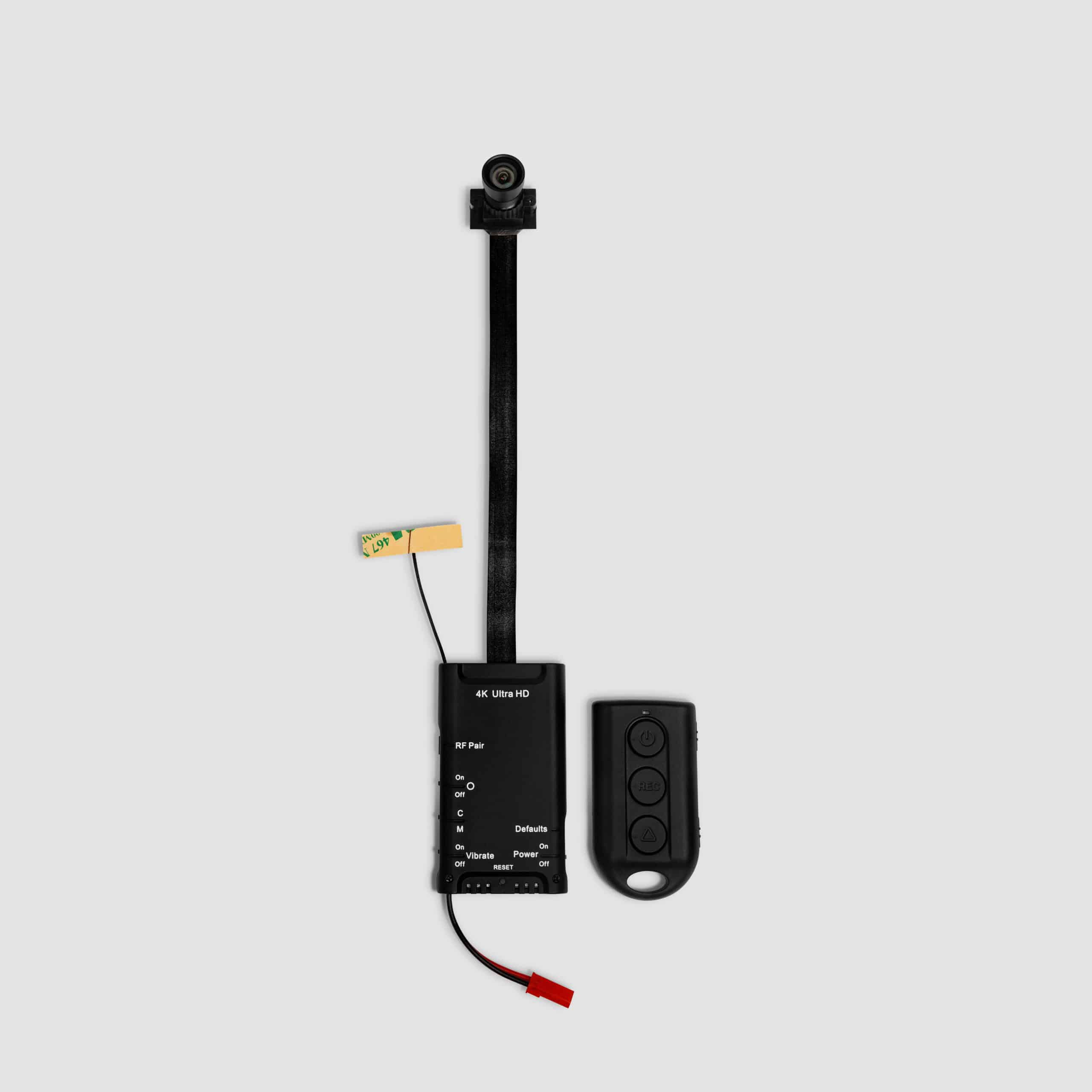

PV-DY40UWW camera module

Rechargeable battery

PI-RF60TX remote commander

128gb Micro SD card

2 x USB type-C cables

Instruction guides

LawMate PV-DY 40UWW_SPEC

PV-DY40UWW V1.0 GUIDE

PV Cam Viewer Quick Guide
